The New York Botanical Garden Enid A. Haupt Conservatory Palm Dome Restoration

PROJECT DETAILS

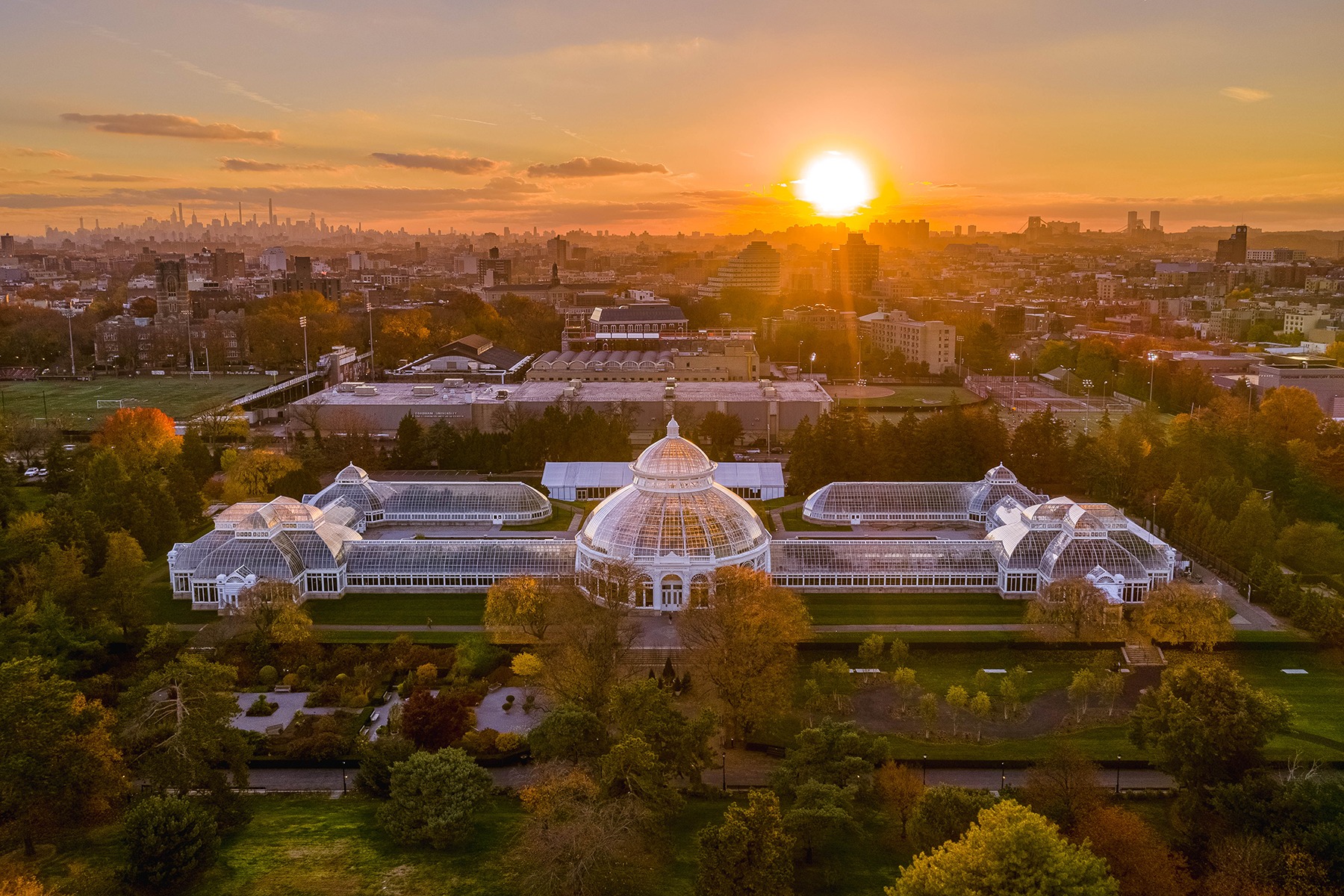

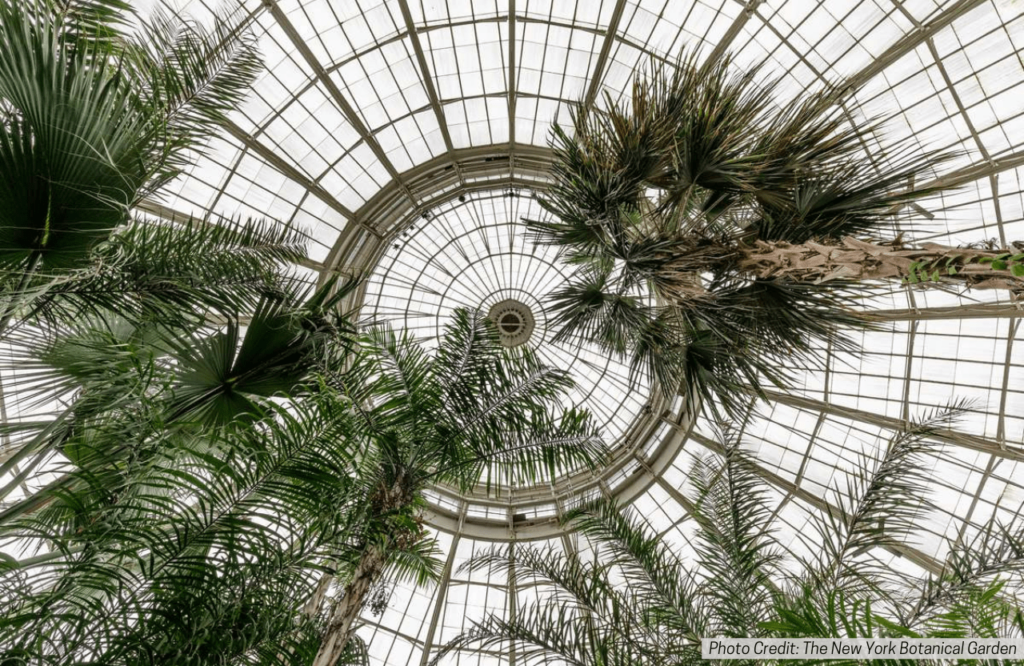

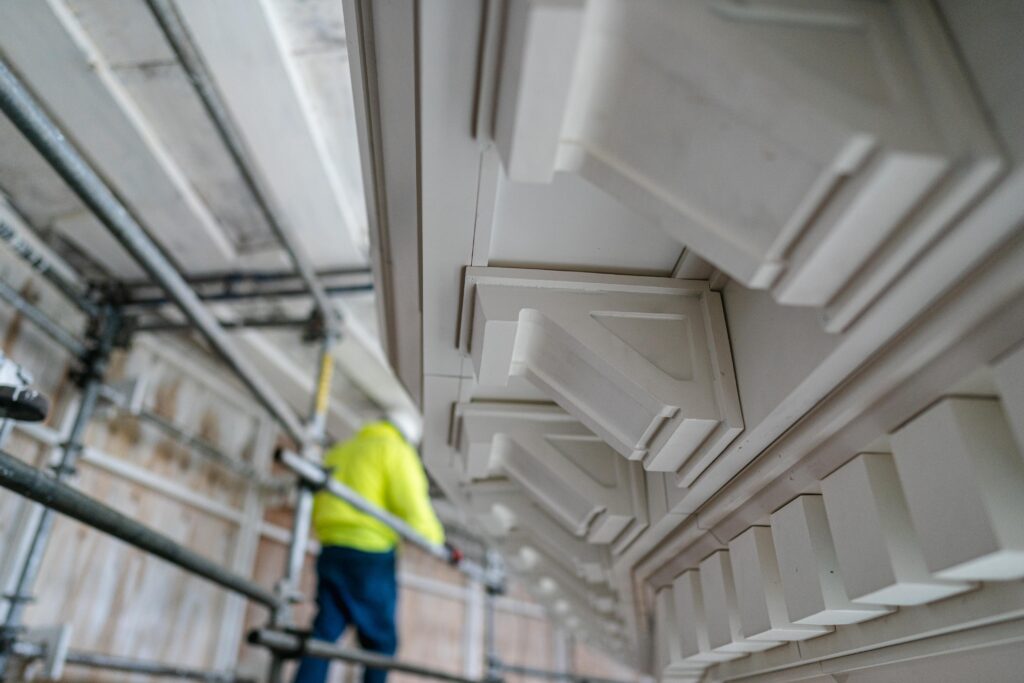

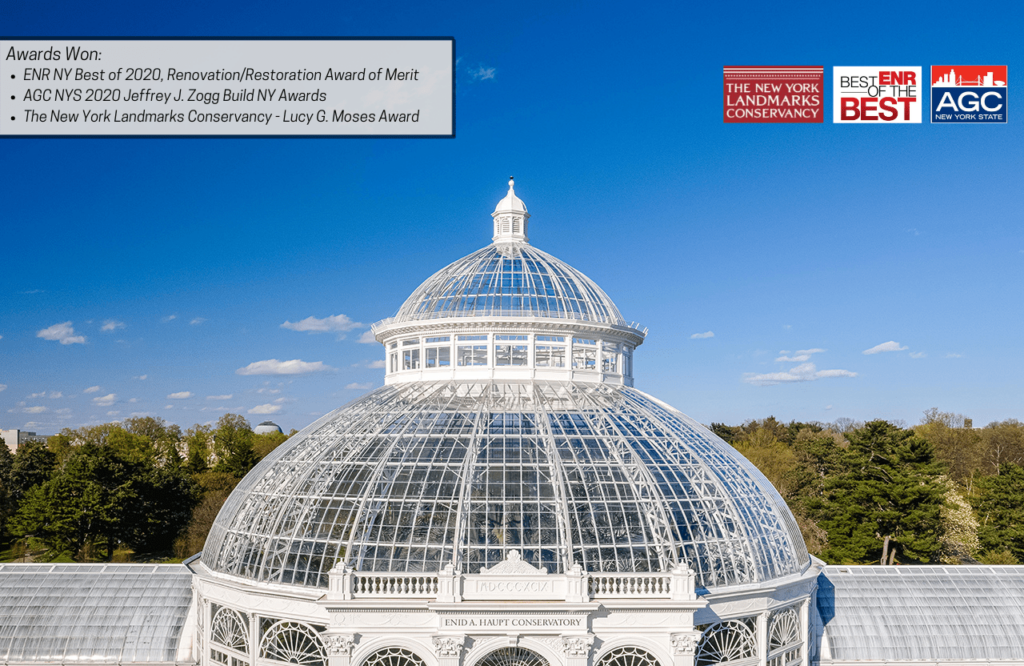

The 55,000 SF Conservatory, an acre under glass, is one of the nation’s preeminent examples of Victorian-era glasshouses and was designated a New York City Landmark in 1973, and was listed on the National Register of Historic Places since 1967. The Conservatory has undergone renovations throughout its 118-year history, but the current restoration project focused on the central dome atop the Palms of the World Gallery. It comprises the cupola, an upper dome, drum which includes the compression ring, and a lower dome. Interior scaffolding with a temporary horizontal work surface erected below the dome drum and an enclosed cylinder around the exterior of the drum (including portions of the lower and upper domes) enabled the work to take place efficiently while safeguarding the laborers and plant specimens. The work surface and enclosure acted as a weatherproof barrier ensuring the tropical collection below remained protected and properly climatized throughout the seasonal environmental changes encountered.

Additional building scope included upgrades to the heating system and lighting by using leading-edge materials and technologies, which made the building more energy efficient while also respecting its landmark status. Metal coating system upgrades, reflecting pool waterproofing, paving, planting and restroom renovations were also included.

IN THE NEWS

View these related articles, which cover specific details about preforming the complex renovations to the Conservatory: NYLC Moses Award, Constructioneer, and Retrofit.

LOCATION:

BRONX, NY

SECTOR:

ARTS & CULTURE

SIZE:

55,000 SQ FT

RESTORATION

The structural restoration of the Dome required overcoming many challenges. The compression ring, the main structural element, was partially accessible during design. Utilizing an aggressive schedule due to limited time allowed for affecting the plant collection, the construction had to be sequenced in a way that allowed for removals and observation of existing conditions to happen concurrently. Additionally, modifications to specified repairs based on on-site conditions needed to be expedited. Actual repairs affected the global stability of the structure and required shoring, which then affected the scaffold footprint and the plantings. Solving all of these constraints required a multi-disciplinary approach of close coordination between owner, designers and construction from design through construction.

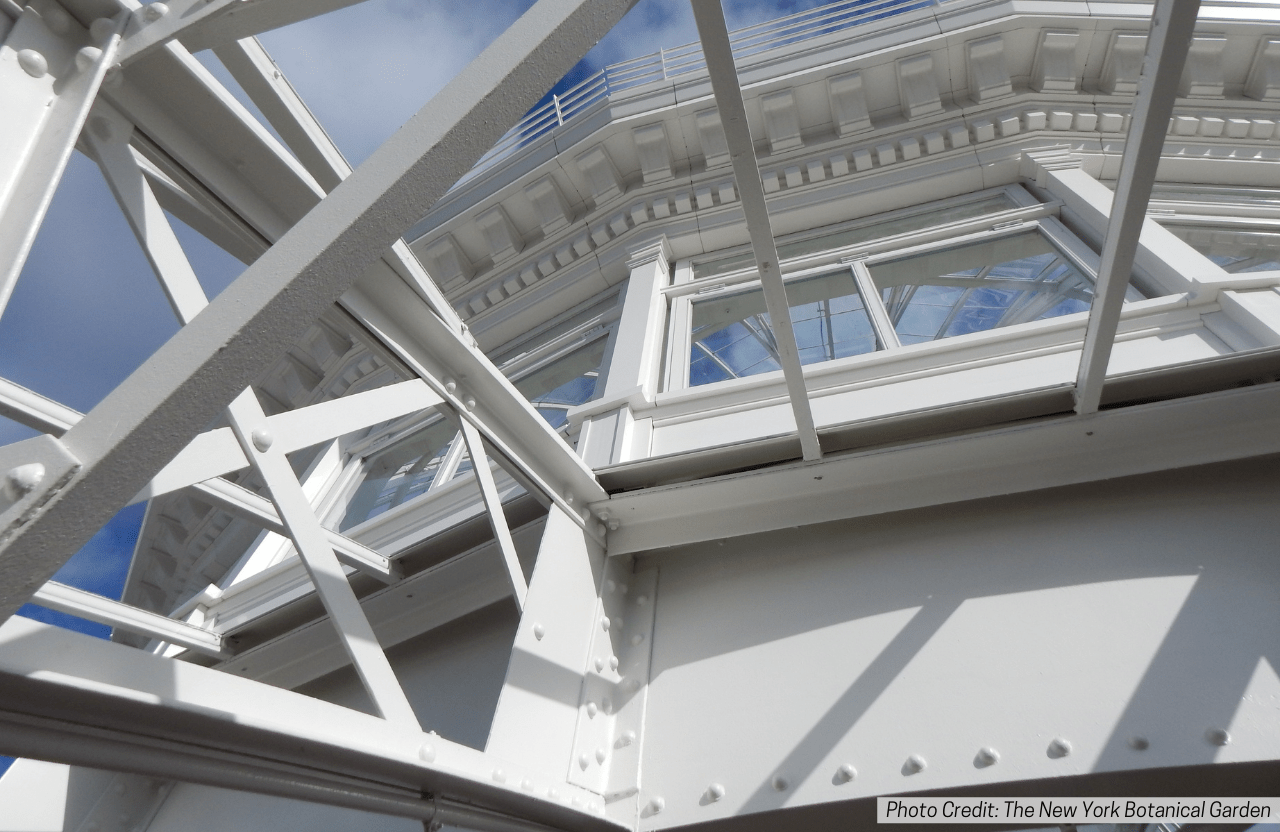

EW Howell made an important recommendation early on to change the material used for the new dome. The painted wood cladding around the drum and the wood cornice—originally constructed with rot-resistant, first-growth bald cypress that is now very rare—was replaced with cast and extruded aluminum components. Not only was this solution very durable and would require much less maintenance, but it would also help preserve these very rare trees from having to be cut down.

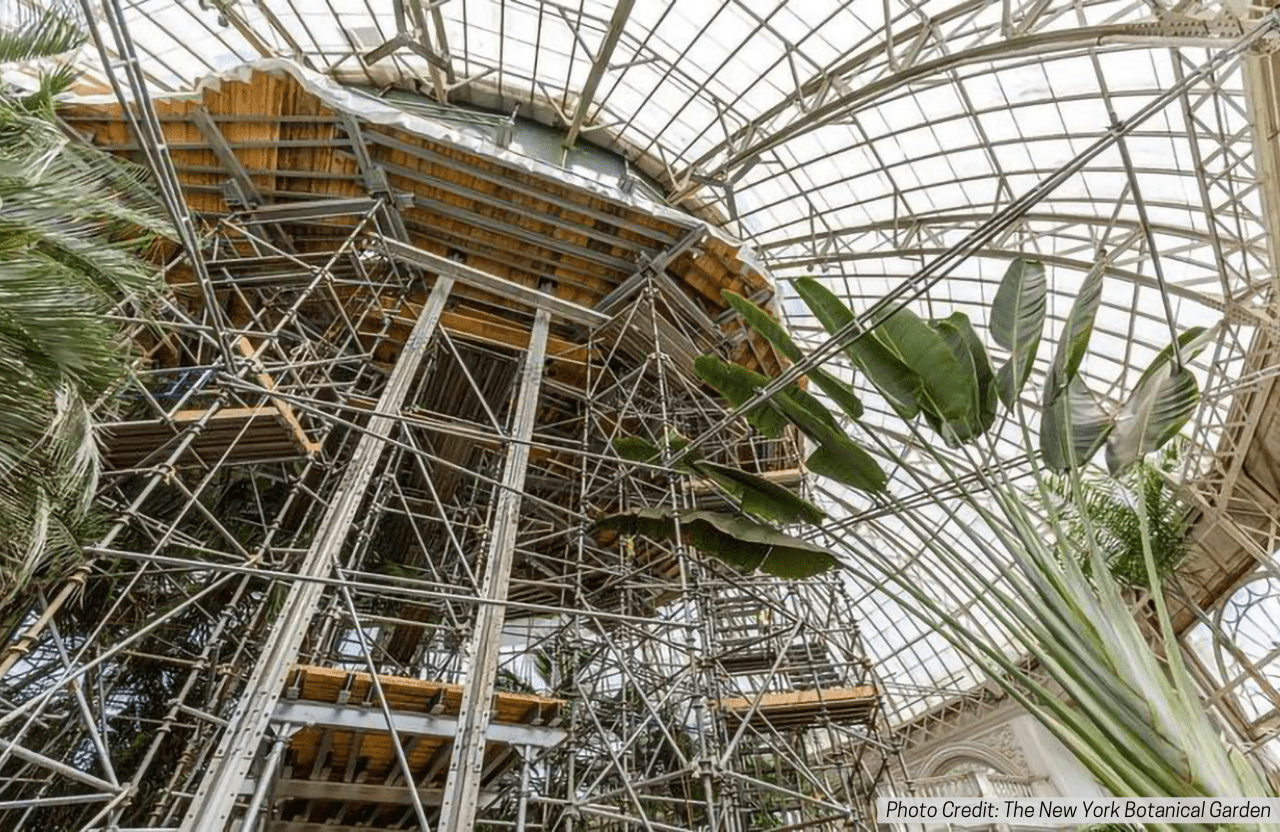

Developing and installing the scaffolding system required overcoming many challenges as it served multiple purposes—a thermal barrier to maintain heat/humidity for the plant collection, a working platform to accommodate multiple trades, and structural support of the compression ring while it was being repaired. The scaffold was also used to shore the compression ring during repairs.
